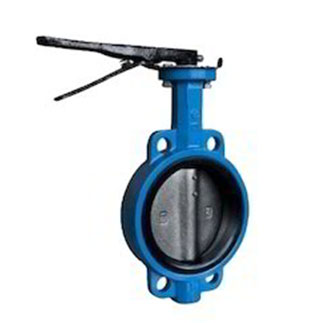

Sant C.I. Butterfly Valve (CR 21A)
Type of Pattern : Short Pattern
Pressure/Class /Rating: PN-1.6
Body Material cum standard: IS-210 Gr. FG-200 Cast Iron
Product Description : Wafer Type
Type of Seat: Nitrile/EPDM Rubber Lining
Type of Disk : SG Iron
Steam : AISI-410 Stainless Steel
ANSI B 16.1 CI-125
End Details : Suitable insertion between Flanges as per BS-10 Table D/E
Body T.P. : 2.4MPa Hyd. (348 Psig.)
Seat T.P. : 1.6MPa Hyd. (232 Psig.)
