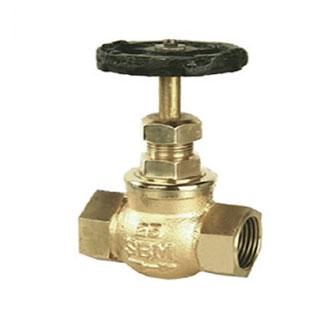

SBM Bronze Globe Valve
Body Material cum standard: GM IS 318 Gr. LTB 2
Product Description : Screwed in bonnet inside screw rising stem
Type of Pattern: Medium Duty
Type of Seat: Integral Seat
Type of Disc: Renewable Disc
Trim : Cu-Alloy
End Details : Screwed female BSP threads to BS-21
Gland Packing : Asbestos
Body T.P. : 21.09kg/cm²g (300Psig.) Hyd.
Seat T.P. : 14.06kg/cm²g (200Psig.) Hyd.
