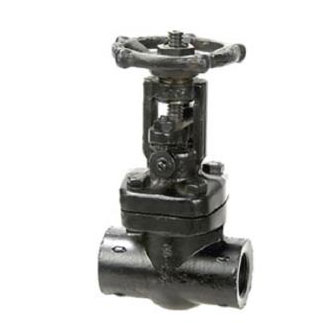

Sant Forged Steel Gate Valve (FSV 1A)
Product Standard: Conforming to BS5352/API 602 Class-800
Pressure/Class /Rating: Class-800
Body Material cum standard: FCS (A 105)
Product Description : Bolted Bonnet O/S & Yoke type Rising Stem
Type of Seat: Renewable Seat
Type of Disc: Renewable Disc
Trim : SS Type 410
End Details : Screwed female NPT threads
Gland Packing : Graphoil Packing
Fastner & Gasket : 207 barg Hyd. (3000 Psig)
Spiral Wound SS 304 (CAF/Graphite filled)
Body T.P. : 207 barg Hyd. (3000 Psig)
Seat T.P. : 152 barg (2200Psig) Hyd. (6.9barg(100Psig) AIR
