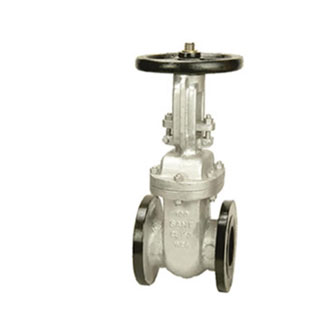

Sant Cast Steel Gate Valve (CS 7)

  • Product Standard: Conforming to BS 1414/API-600

  • Pressure/Class /Rating: Class-150

  • Body Material cum standard: CCS (ASTM A-216 Gr. WCB)

  • Product Description : Bolted Bonnet O/S Yoke type Rising Stem

  • Type of Pattern: Straight

  • Type of Seat: Renewable Seat

  • Type of wedge: Solid / Flexible

  • Trim : SS AISI-410 with Aluminum Bronze Sleeve

  • End Details : Flanges as per ASME B 16.5 Class 150 R.F., undrilled

  • Gland Packing : : Graphoil Packing

  • Body T.P. : 30barg Hyd. (435 Psig)

  • Seat T.P. : 22barg (320Psig.) Hyd. 6.9barg AIR (100Psig.)


Enquire Now
