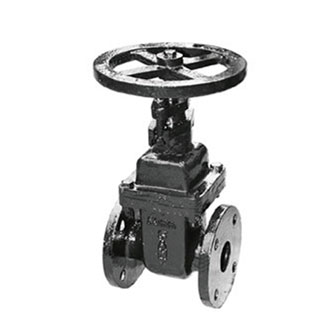

Sant C.I. Wedge Gate Sluice Valve (CR 32B)

  • Product Standard: IS-14846 duly ISI Marked

  • Pressure/Class /Rating: PN 1.6 PD Type

  • Body Material cum standard: IS-210 Gr. FG-200 Cast

  • Product Description : Bolted Bonnet Inside screw non rising stem

  • Type of Seat: Renewable

  • Type of Wedge : Solid Wedge

  • Stem : Cu-Alloy, Stem SS (12 Cr. 12)

  • Gland Packing : Lubricated Asbestos

  • End Details : Flanges as per IS 1538 F/F Drilled

  • Body T.P. : 2.4 MPa Hyd. (348 Psig)

  • Seat T.P. : 1.6 MPa Hyd. (232 Psig)
