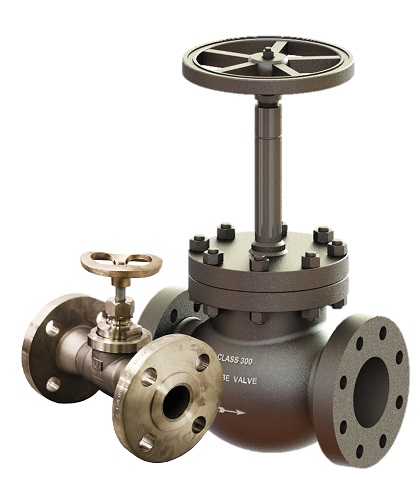

Globe Valves
(Non-Ext & Extended / Regulating, Check & Stop Check)
Series 2000: Tanker Range
Series 9000: ASU Range
Size: 1/2" - 8"; DN15 - DN200
Material: Bronze, Stainless Steel, Monel & Aluminium
Pressure Rating: Class150 to 1500; PN16 to PN100
End Connections: Butt Weld, Flanged, Socket Weld & Screwed
Temperature: -196'C to +65'C
Enquire Now

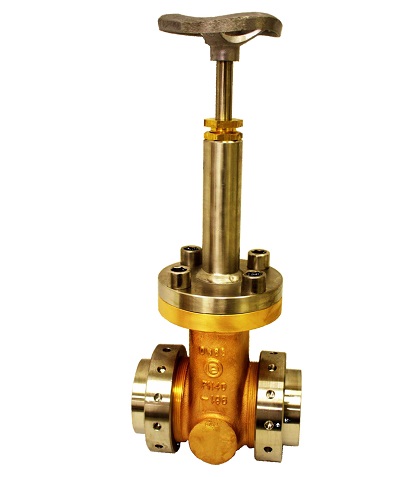

Gate Valves
Series 2000: Tanker Range
Series 9000: ASU Range
Size: 1/2" - 8"; DN15 - DN200
Material: Bronze, Stainless Steel, Monel & Aluminium
Pressure Rating: Class150 to 1500; PN16 to PN100
End Connections: Butt Weld, Flanged, Socket Weld & Screwed
Temperature: -196'C to +65'C
Enquire Now

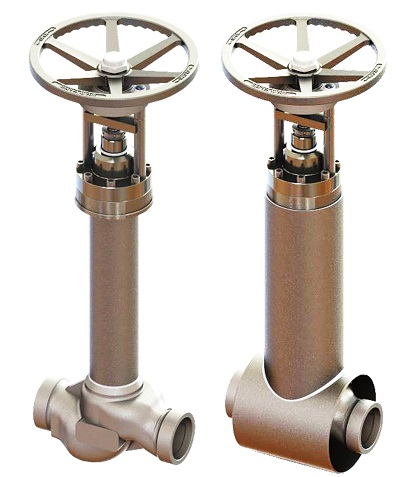

Vacuum Jacketed Valves
Series 2027: Non Bellows Sealed
Series 2028: Bellows Sealed
Size: 1/2" - 8"; DN15 - DN200
Material: Bronze, Stainless Steel, Monel & Aluminium
Pressure Rating: Class150 to 600; PN16 to PN40
End Connections: Butt Weld, Flanged, Socket Weld & Screwed
Temperature: -269'C to +149'C
Enquire Now

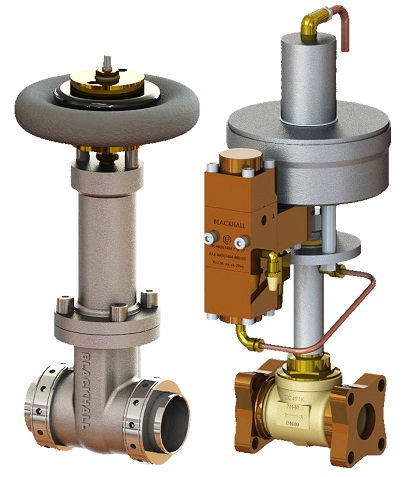

Emergency Shut-Off Excess Pressure Valves
Series 2020: Gate
Series 2003: EPD
Size: 1/2" - 3"; DN15 - DN80
Material: Bronze, Stainless Steel
Pressure Rating: Class150 to 600; PN16 to PN40/50
End Connections: Butt Weld, Flanged, Socket Weld & Screwed
Temperature: -196'C to +65'C
Enquire Now

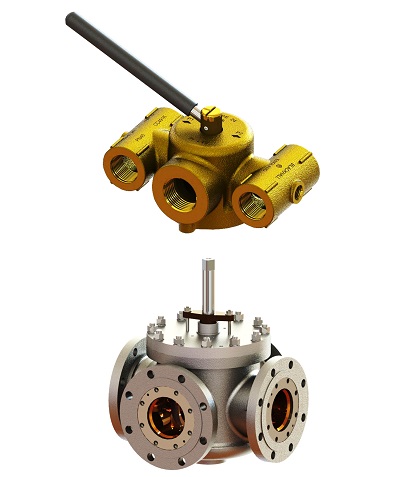

3-Way Divertor & 4-Way Cardio Valves
Series 2005: 3-way Diverter Valve
Series 1005/6: 4-Way Cardio
Size: 1" - 8"; DN25 - DN200
Material: Bronze, Stainless Steel, Monel & Aluminium
Pressure Rating: Class150 to 600; PN16 to PN40/50
End Connections: Flanged & Screwed
Temperature: -196'C to +65'C
Enquire Now
Globe Valves LNG/LPG
(Ext & Non-Ext Spindles)
Series: 2000 & 9000
Size: 1/2" - 16"; DN15 - DN400
Material: 316 Stainless Steel
Pressure Rating: Class150 to 600;PN16 to PN40
End Connections: Flanged & Butt Weld
Temperature: -196'C to +65'C
Enquire Now
Globe Stop & Check Valves LNG/LPG
Series: 2000 & 9000
Spindles: Extended and Non-Extended
Size: 1/2" - 16"; DN15 - DN400
Material: 316 Stainless Steel
Pressure Rating: Class150 to 600; PN16 to PN40
End Connections: Flanged & Butt Weld
Temperature: -196'C to +65'C
Enquire Now
Check Valves LNG/LPG
(Piston, Swing & Wafer)
Series: 2000 & 9000
Spindles: Extended and Non-Extended
Size: 1/2" - 16"; DN15 - DN400
Material: 316 Stainless Steel
Pressure Rating: Class150 to 600; PN16 to PN40
End Connections: Flanged & Butt Weld
Temperature: -196'C to +65'C
Enquire Now
Actuated Globe Valves LNG/LPG
Series: 2011 & 9311
Size: 1/2" - 16"; DN15 - DN400
Material: 316 Stainless Steel
Pressure Rating: Class 150 to 600; PN16 to PN40/50
End Connections: Flanged & Butt Weld
Temperature: -196'C to +65'C
Enquire Now
Series 6500 ARV For Pump-Protection
(Modulating)
Size: 1.5" - 26" DN40 - DN650
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Nickel, Exotic Alloys & Titanium
Pressure Rating: Class150 to 600; PN16 to PN40
End Connections: Flanged & Butt Weld
Enquire Now
Series 6600 ARV For Pump-Protection
(On-Off & Semi-Modulating)
Size: 1.5" - 18"; DN40 - DN450
Material:Carbon Steel, Stainless Steel, Duplex, Super Duplex, Nickel, Exotic Alloys & Titanium
Pressure Rating: Class150 to 2500; PN16 to PN420
End Connections: Flanged & Butt Weld
Enquire Now
Series 6700 ARV For Pump-Protection
(Modulating)
Size:1.5" - 14" DN40 - DN350
Material:Carbon Steel, Stainless Steel, Duplex, Super Duplex, Nickel, Exotic Alloys & Titanium
Pressure Rating: Class150 to 2500; PN16 to PN420
End Connections: Flanged, Butt Weld & Special
Enquire Now
Marine and Exotic Alloy Check Valves
Blackhall cryogenic, oil and gas Globe valves are available in regulating, check and stop check types and are manufactured with wide range of end connections and material combinations.They are available in sizes from DN15 to DN200 (1/2" to 8") with operating temperatures in the range of -196'C to +65'C.
Series:4300
Size:1/2" - 18" DN15 - DN450
Material: Titanium & Exotic Alloys
Pressure Rating:Class150 to 1500; PN16 to PN100
Enquire Now
Marine and Exotic Alloy Gate Valves
(On-Off & Semi-Modulating)
Series:4100 & 4400
Size:1/2" - 24" DN15 - DN600
Material:Aluminium Bronze Titanium & Exotic Alloys
Pressure Rating:Class150 to 1500; PN16 to PN100
Enquire Now
Marine and Exotic Alloy Globe Valves
(Modulating)
Series:4200 & 4500
Size:3/8" - 24" DN10 - DN600
Material:Aluminium Bronze Titanium & Exotic Alloys
Pressure Rating:Class150 to 1500; PN16 to PN100
Enquire Now

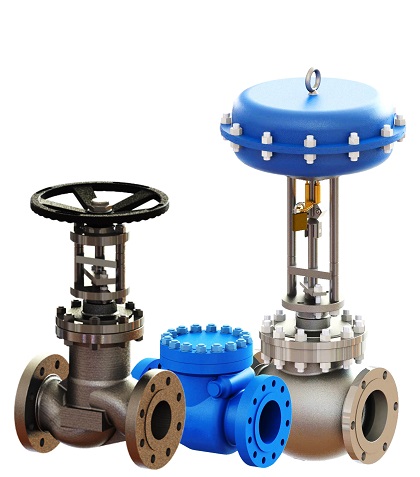

Other Special Valves
Series 2012/2013: In-Line Relief Valve
Series 2014/2015: Y Strainer
Series 2002: Cluster Valve
Series 2006: Vacuum Probe Valve
Series 9300/2011: Globe Actuated Valve
Series 2201: Globe Angle Valve
Series 2001: Vacuum Probe Valve
Series 2008: In-Line Relief Valve
Series 2019: Thermo Check
Enquire Now
