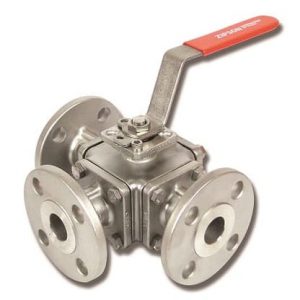

501F, 3/4/5-Way Flange Ball Valve
Size: 1/2"~12"/ DN15-300
Design Feature:
● Body & end caps quality investment and sand casting
● With ISO 5211 direct mounting pad up to 4″, ISO holes for larger sizes
● High performance adjustable stem packing
● Blow-out proof stem design
● Available in 3/4/5-way construction
● Ball type can be L/ T/ X/ I-port
● With real locking function
● ASME/ PN/ JIS flange connection
Enquire Now

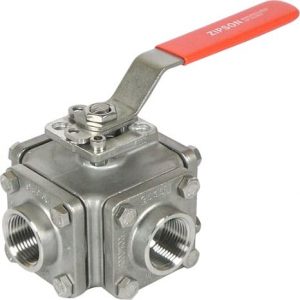

501T, 3/4/5-Way Ball Valve
Size: 1/4"~4"/ DN08-100
Design Feature:
● Body & end caps quality investment casting
● With ISO 5211 direct mounting pad up to 4”
● Adjustable stem packing
● Blow-out proof stem design
● Available in 3/4/5-way construction
● Ball type can be L/ T/ X/ I-port
● With real locking function
● Thread/ SW/ BW/ ISO 1127/ DIN 11850 connection
Enquire Now

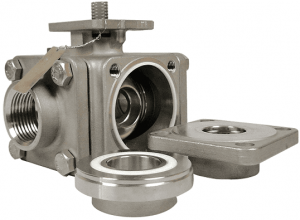

505T, Inline Repairable 3/4/5-Way Ball Valve
Size: 1/4"~4"/ DN08-100
Design Feature:
● In-line repairable design, easy to repair and assemble when the valves are on line
● Body & end caps quality investment casting
● With ISO 5211 direct mounting pad
● Adjustable stem packing
● Blow-out proof stem design
● Available in 3/4/5-way construction
● Ball type can be L/ T/ X/ I-port with
● Real locking function
Enquire Now

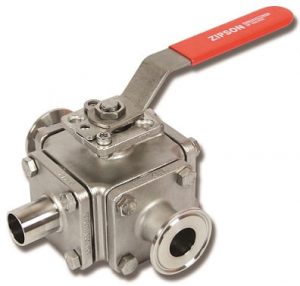

620A, Multi-Way Sanitary Ball Valve
Size: 1/4"~4"/ DN08-100
Design Feature:
● T-Clamp, tube weld, SMS 3008 ends
● Body & end caps quality investment casting
● High purity with 0.51~0.64 um (20-25 u-in or 180G/ #180) flow port polish
● FDA certified O-ring and sealing kits
● With ISO 5211 direct mounting pad
● Adjustable stem packing
● Blow-out proof stem design
● Available in 3/4/5-way construction
● Ball type can be L/ T/ X/ I-port with
● Real locking function
Enquire Now

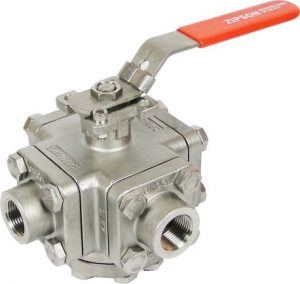

513T, High Pressure Multi-Way Ball Valve
Size: 1/4"~2"/ DN08-50
Design Feature:
● ASME B16.34 construction design
● Body & end caps quality investment casting
●3000 psi high pressure design
● Trunnion and full bore
● With ISO 5211 direct mounting pad
● Adjustable stem packing
● Blow-out proof stem design
● Available in 3/4/5-way construction
● Ball type can be L/ T/ X/ I-port with
● Real locking function
Enquire Now

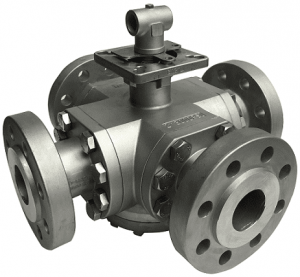

513F, High Pressure Multi-Way Flange Ball Valve
Size: 1/2"~4"/ DN15-100
Design Feature:
● ASME B16.34 construction design
● Body & end caps quality investment casting
● With ISO 5211 direct mounting pad
● Trunnion and full bore
● High performance adjustable stem packing
● Ball type can be L/ T/ X/ I-port
● Blow-out proof stem design
● Available in 3/4-way construction
● Ball type can be L/ T/ X/ I-port with
● ASME 600/ 900/ 1500
Enquire Now

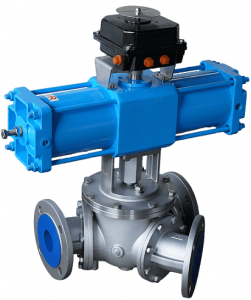

515M, 3-Way Ball Type Diverter Valve
Size: 2"~10"/ DN50-250
Design Feature:
● Trunnion design
● Body & end caps quality investment casting
● High performance packing
● ASME 150
● With cylinder (actuator)
Enquire Now
