LPG & NH3 Products

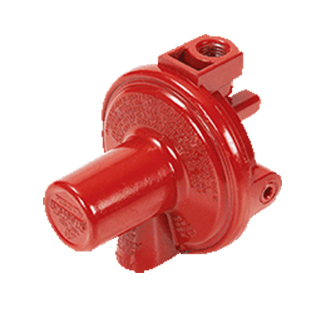

Compact First Stage Regulators LV3403TR

Regulators

Application:

Ideal for use as a first stage regulator on any domestic size ASME or DOT container in propane gas installations requiring up to 1,500,000 BTU’s per hour. The regulator is factory set to reduce container pressure to an intermediate pressure of approximately 10 PSIG.


Features:

  • Compact design can be connected to a service valve using either a POL adapter or a RegO product pigtail.

  • Large threaded ⅜” F.NPT bonnet vent can easily be piped-away underground installations without the need of glue            kits or extra adapters.

  • Non Adjustable

  • Large flow orifice resists freeze ups due to water concentration in LPG vapor.


Enquire Now

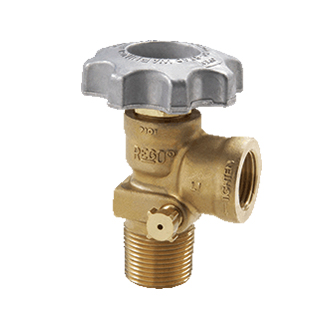

 heavy duty cylinder valve

Cylinder and Service Valves

Application:

This This heavy duty cylinder valve is designed for vapor withdrawal of DOT cylinders up to 100 lbs. propane capacity. It is used in domestic hookups, and industrial commercial installations. is designed for vapor withdrawal of DOT cylinders up to 100 lbs. propane capacity. It is used in domestic hookups, and industrial commercial installations.


Features:

  • Equipped with a fast filling throat and high lift, o-ring stem seal design.

  • Utilizes a nylon tapered seat design for positive closing.

  • Available with a fixed liquid level gauge.

  • Self-tapping screw secures handwheel to stem and reduces possibility of handwheel vibrating loose while in transit.


Enquire Now

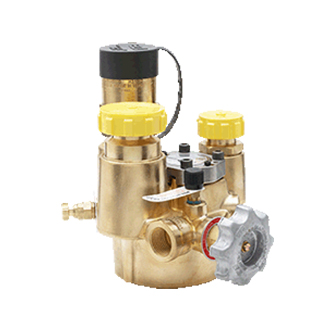

Multivalve

Multivalve® Assemblies

Application:

These Multivalves® are designed for use in single opening ASME containers equipped with a 2½” M. NPT riser. They can be used with underground ASME containers up to 639 sq. ft. surface area, and above ground ASME containers up to 192 sq. ft. surface area. A separate opening is required for liquid withdrawal. The MultiBonnet® is standard on this valve.


Features:

  • The most complete Multivalve® assembly in the LP-Gas industry.

  • Designed for installation of a 1/8” FNPT pressure gauge or pressure gauge connection. The pressure test port will              communicate to the downstream side of the service valve.

  • Double back check filler valve has filling capacities matched to the high capacity pumps and meters on modern                     delivery trucks.


Enquire Now

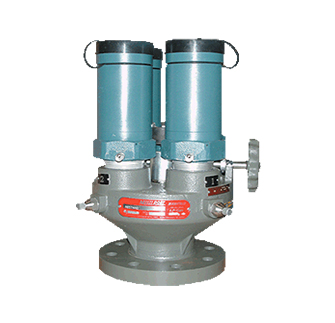

Multiport™ Pressure Relief Valve

Pressure Relief Valves and Relief Valve Assemblies

Application:

Designed especially for use as a primary relief device on large stationary pressurized storage containers with flanged openings. These manifolds incorporate an additional relief valve, not included in the flow rating, allowing for servicing or replacement of any one of the relief valves without evacuating the container. The handwheel on the manifold selectively closes off the entrance port to the relief valve being removed while the remaining relief valves provide protection for the container and its contents. All manifold flow ratings are based on flow through the relief valves after one has been removed for service or replacement.


Features:

  • Allows for relief valve removal and replacement on a periodic basis without shutting down and evacuating the         container.

  • “Pop-action” design of relief valves insures maximum protection with only minimal product loss at moderately          excessive pressures.

  • A rubber plug with chain is provided to protect manifold outlet threads where the relief valve has been removed.

  • May be mounted directly to a welding neck flange or manhole cover plate. Requires no inlet piping.


Enquire Now

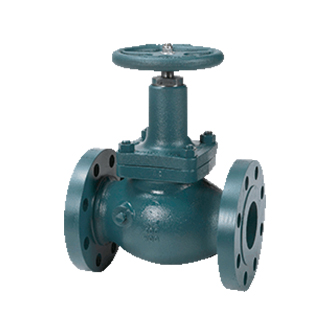

Globe Valve

Globe and Angle Valves

Application:

Designed to vastly reduce the amount of product vented when disconnecting bobtail delivery trucks, dispensing systems and anhydrous ammonia nurse tanks.


Features:

  • Minimizes product venting loss, when disconnecting, instantly by housing the seat disc at the bottom of the built-in         ACME filling connector.

  • Vents less than 2cc of liquid when disconnected.

  • “V”-ring spring-loaded pressure seal design provides for dependable, leak-free operation. No packing to retighten or          replace.

  • Large flow orifice resists freeze ups due to water concentration in LPG vapor.


Enquire Now

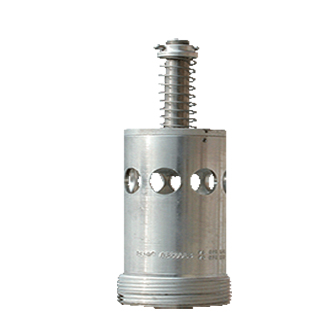

Excess Flow Valves

Excess Flow Valves, Check, Filler and Vapor Equalizing Valves

Application:

Designed for top mounting in storage tank manhole covers for liquid or vapor applications. The tapped inlet allows for an optional 1” NPT dip pipe connection to withdraw liquid from the top of the tank. The 1519C4 is designed for installation in long line or branch piping applications.


Features:

  • Precision machined

  • Generous flow channels provide low pressure drop.

  • Cotter pin prevents loss of spring retainer due to vibration in service.

  • Stainless steel spring provides consistent closing flow and long service life.


Enquire Now

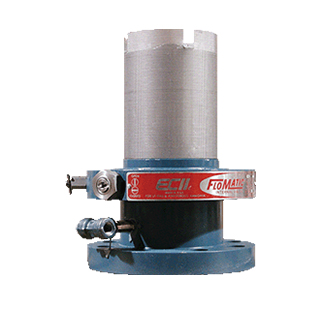

Internal Valves

Internal Valves and Accessories

Application:

Designed primarily for use with LP-Gas and anhydrous ammonia as a main valve on small capacity pumping systems, NH3 nurse tanks and in-line installations. It may also be installed in the vapor equalizing opening on bobtail delivery trucks. Installation is quick and easy, and it fits in both full and half couplings, as well as, in-line applications. The valve may be actuated manually by hand or cable.


Features:

  • Valve is compact, with one piece body construction.

  • Spring loaded V-packing with heavy duty wiper ring on operating shaft for dependable leak-free construction.

  • Nylon bearing supported operating shaft provides smooth, easy operation.

  • Simple operating lever allows for easy connection of cable controls. Built in excess flow valve


Enquire Now

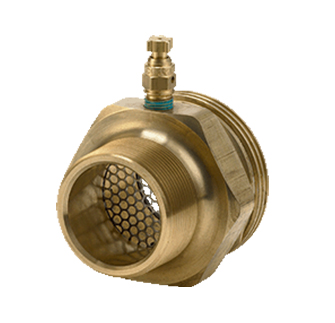

Adapters

Adapters, Connectors and Fittings

Application:

Designed especially for liquid filling and vapor equalization of LP-Gas and anhydrous ammonia. The limited travel of the handle on the tailpiece minimizes spin-off, encouraging cautious removal to properly bleed off trapped product to assure closure of the filler valve and hose end valve. The ACME threads are machined on a rugged steel insert which is permanently cast in the aluminum handle, providing for durability under repeated use.


Features:

  • Lightweight aluminum handle is contoured and ribbed for added comfort, easy handling allows for easy make-up.

  • Free swivel action between tailpiece and handle allows for easy make-up.

  • Simplified design eliminates an extra joint and provides smooth, uninterrupted flow.


Enquire Now

Miscellaneous Equipment

Miscellaneous Equipment (Including Rotogages and ESVs

Application:

Rotogages® are designed to provide an accurate determination of LPGas or anhydrous ammonia container contents. They mount in a standard 1” NPT coupling on large mobile or stationary containers.


Features:

  • Supported design (TS Models) eliminates whipping and the need for internal support hangers.

  • Resistance-free nylon bearing inserts reduce friction and promote operating ease.

  • Dial face is dual calibrated to provide greater accuracy in reading contents in containers which are not level.


Enquire Now
