High Performance Ball Valve

High Performance Ball Valve For Long Term Operation

The self-adjustable stem sealing design provide long term operation to reduce the frequency of maintenance and sealing parts replacement. This deign is very suitable for the valve with automation, such as pneumatic or electric actuator for high cycle operation. As the valve sealing over it’s wear compensation, the media will leak from windows around the valve neck. This initial leakage will help uses to replace a new valve or repair kits in advance.


Zipson can also provide the products to meet ISO 15848 or TA-Luft fugitive emission requirement when require. The emission bonnet can be an option for ultra critical condition for safety of human being or environment.





we are hiring

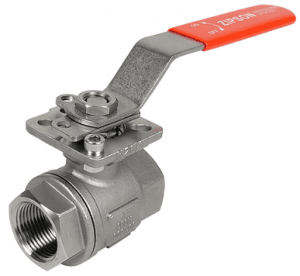

201D, 2-PC Ball Valve

  • Size: 1/4"~4"/ DN08-100

  • Design Feature:

● Body & end caps quality investment casting

● ANSI B16.34 construction

● High performance adjustable stem packing

● ISO 5211 direct mounting pad

● Blow-out proof stem design

● With locking device


Enquire Now

we are hiring

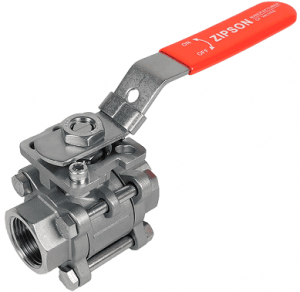

302F, 3-PC Ball Valve

  • Size: 1/4"~6"/ DN08-150

  • Design Feature:

● Body & end caps quality investment casting

● Swing-out design for easy replacement

● ISO 5211 direct mounting pad

● High performance self adjusted stem design

● Blow-out proof stem design

● Thread/ SW/ BW/ ISO 1127/ DIN 11850 (DIN EN 10357-A)

● lange end ANSI150/ PN16/ JIS10K

● With locking device


Enquire Now

we are hiring

305D, 3-PC Ball Valve, 2000 PSI

  • Size:1/4"~4"/ DN08-100

  • Design Feature:

● Body & end caps quality investment casting

●ANSI B16.34 construction

● 2160/ 2000 PSI, Class 900/ 800

● CRN registered

● Fire safe certified, with double seals

● High performance self adjusted stem design

● Blow-out proof stem design

● Thread/ SW/ BW/ ISO 1127


Enquire Now

we are hiring

305F, 3-PC Flange Ball Valve, ANSI 600 & 900

Blackhall cryogenic, oil and gas Globe valves are available in regulating, check and stop check types and are manufactured with wide range of end connections and material combinations.They are available in sizes from DN15 to DN200 (1/2" to 8") with operating temperatures in the range of -196'C to +65'C.


  • Size: 1/2"~4"/ DN15-100

  • Design Feature:

● Body & end caps quality investment casting

● ANSI B16.34 construction

● ANSI Class 900/ 600

● CRN registered

● High performance self adjusted stem design

● Blow-out proof stem design

● Fire safe certified, with double seals


Enquire Now

we are hiring

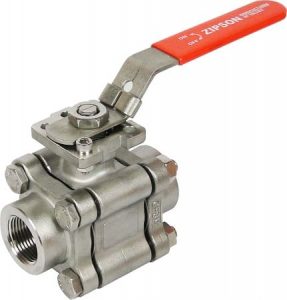

306D, 3-PC Ball Valve, 3600/ 3000 PSI

  • Size: 1/4"~3"/ DN08-80

  • Design Feature:

● Body & end caps quality investment casting

● ANSI B16.34 construction

● 3600/ 3000 psi

● Fire safe certified, with double seals

● High performance self adjusted stem design

● Blow-out proof stem design

● Thread/ SW/ BW (Sch. 80)


Enquire Now

we are hiring

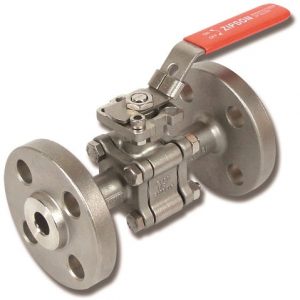

306F, 3-PC Ball Valve, ANSI1500

  • Size: 1/2"~3"/ DN15-80

  • Design Feature:

● Body & end caps quality investment casting

● ANSI B16.34 construction

● ANSI Class 1500

● Blow-out proof stem design

● Fire safe certified, with double seals

● High performance self adjusted stem design


Enquire Now
