Cryogenic & Industrial Gas Products

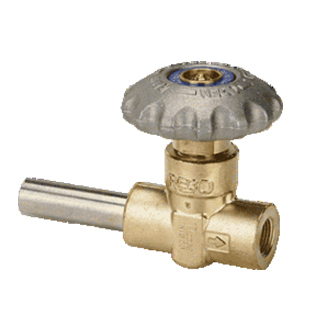

Short Stem Cryogenic Valves T9450 & T9460 Series

Cryogenic Cylinder Equipment

Application:

The T9450 and T9460 series valves are designed for use on portable cryogenic cylinders and other in-line shut-off valve applications. Approved for TPED in accordance with EN1626.


Features:

  • Spring loaded stem seal automatically adjusts for any gasket wear, eliminating the need to constantly retighten         packing nut.

  • Non-rising stem and low profile allow the valve to fit into tight areas and still provide easy access.

  • Unique pressure-sealed moisture barrier helps prevent freeze up at cryogenic temperatures.

  • Conical swivel seal design helps prevent seat galling from over torquing.


Enquire Now

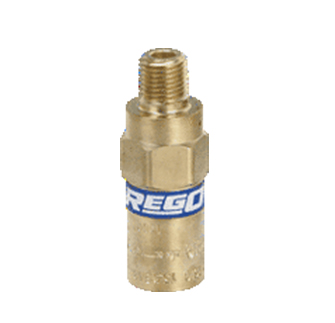

Relief Valves

Relief Valves

Application:

9400 relief valves are specifically designed for thermal line safety relief applications and cryogenic liquid containers.


Features:

  • All valves are cleaned and packaged for oxygen service per CGA G-4.1.

  • Bubble tight at 95% of set pressure.

  • Easy to read color coded psig / bar labels.

  • Tamper resistant

  • 100% factory tested.


Enquire Now

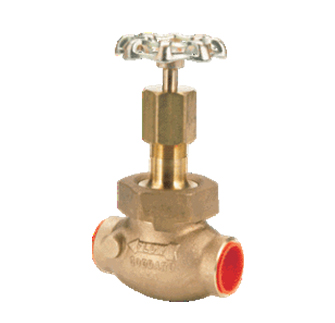

Globe Valves

Globe Valves

Application:

The BB Series globe valves are designed for handling of cryogenic liquids through bulk tanks, trucks, trailers, iso-containers and piping configurations. Our time tested spring loaded stem packing and superior seat design provide for long life and easy maintenance. Internal components are the same as the SK Series, the BB series & SK Series shares same repair kit.


Features:

  • Superior Flow: Provides high Cv for rapid and reliable loading and unloading.

  • Sizes: ¼” to 2“.

  • Bonnet Type: Bolted.

  • Pressure Rating: 600 PSI

  • Temperature Rating: -325°F (-198°C) to +150°F (+65°C).


Enquire Now

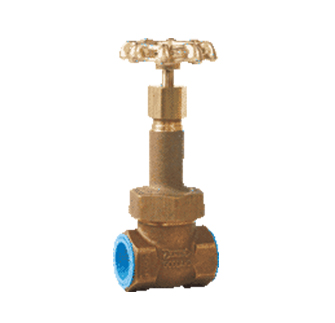

Gate Valves

Gate Valves

Features:

  • Top Entry: This union bonnet valve can be permanently installed in the line and serviced from the top

  • Construction: Bronze cast body and Internals Rugged construction for long life Straight through construction for         high CV Designed with unique KOLD-SEAL™ Standard split wedge design provides better sealing and cycle life

  • Sizes: ½” - 3” (15mm - 80mm)

  • Temperature Rating: -325°F - 150°F (-196°C + 65°C)

  • Service: Liquified and vaporized atmospheric gases, LNG.


Enquire Now

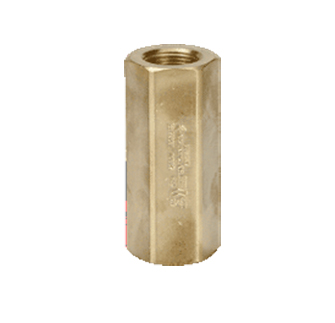

Check Valves

Check Valves

Application:

Inline check valves with metal seat option for cryogenic service or with soft seat option for leak free operation in gas service.


Features:

  • One directional flow indicated by arrow on body.

  • Large Cv for high flow capability and low pressure drop.

  • Working temperature range: -320° F to +165° F for metal seats. -20° F to +165° F for soft seats.

  • 1 psig opening pressure.


Enquire Now

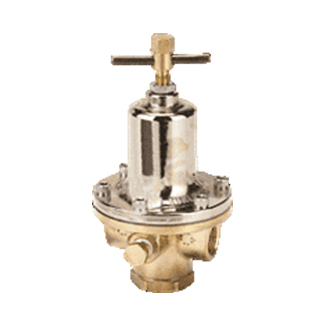

Regulators

Regulators

Application:

The 1780 Series Regulators are designed for final line pressure regulation on gas distribution systems. They are suitable for a variety of gases in medical or industrial applications. The 1780 Series Regulators have a balanced seat, are constructed with oxygen compatible materials, and have the same valve design, brass body, and internal parts as the premium BR-1780 Series. Flow performance is likewise equal to the BR-1780 Series.


Features:

  • Maintains a steady downstream pressure across a range of inlet pressure commonly provided by a cryogenic bulk         tank.

  • Large seat and diaphragm areas provide high capacity with sensitive control of delivery pressure with low falloff.

  • T-handle adjusting screw.

  • Maximum inlet pressure is 435 psig. (30 Bar)


Enquire Now

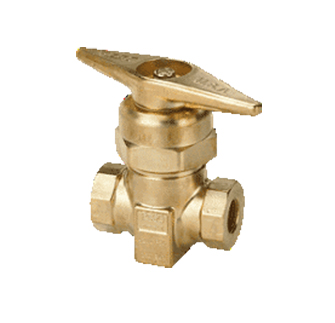

Master High Pressure Valves

Master High Pressure Valves

Application:

The HP9560 Series high pressure brass valves are used on cylinder filling panels, tube trailers, and other high pressure manifolds and piping systems. The HP9560 Series exhibits a very low operating torque under pressure for ease of manual operation.


Features:

  • 5600 PSI (386 Bar) maximum working pressure

  • Non-rising stem design with O-Ring Seal for durable service.

  • Large brass handwheel for easy low torque operation under pressure.

  • All valves cleaned for use in oxygen per CGA G-4.1.

  • Temperature range -40°F to +165°F.


Enquire Now

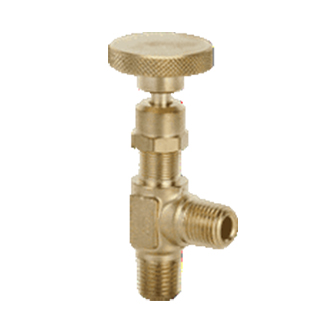

Adapters, Nipples, Pipe & Miscelaneous

Adapters, Nipples, Pipe & Miscelaneous

Application:

Ideal for use as a gauge isolation valve or applications requiring accurate throttling of pressure.


Features:

  • Compact design provides easy installation.

  • Fine stem threading and long taper allow precise metering and leak-free shut-off.

  • Internal stop prevents the stem from being accidentally unscrewed from the body.

  • Rugged forged brass bodies withstand higher pressures.


Enquire Now
